DAFTAR ISI

1. Hardware

2. Rangkaian Simulasi

3. Flowchart

4. Listing Program

5. Analisa

6. Video Praktikum

7. Link Download

1. Hardware  [Kembali]

2. Rangkaian  [Kembali]

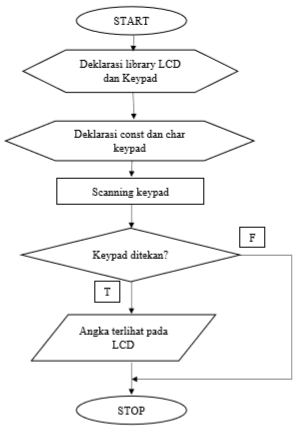

3.Flowchart  [Kembali]

4. Listing Program  [Kembali]

#include <Keypad.h>

const byte ROWS = 4; //four rows

const byte COLS = 4; //four columns

//define the cymbols on the buttons of the keypads

char hexaKeys[ROWS][COLS] = {

 {'A', 'B', 'C','D'},

{'E', 'F', 'G','H'},
{'I', 'J', 'K','L'},
{'M', 'N', 'O','P'}

};

byte rowPins[ROWS] = {6, 7, 8, 9}; //connect to the row pinouts of the keypad

byte colPins[COLS] = {5, 4, 3, 2}; //connect to the column pinouts of the keypad

//initialize an instance of class NewKeypad

Keypad customKeypad = Keypad( makeKeymap(hexaKeys), rowPins, colPins, ROWS, COLS);

void setup(){

  Serial.begin(9600);

}



void loop(){

  char customKey = customKeypad.getKey();



  if (customKey){

    Serial.println(customKey);

  }

}

5. Analisa  [Kembali]

S1	S2	S3	S4
S5	S6	S7	S8
S9	S10	S11	S12
S13	S14	S15	S16

Dari keypad diatas menggunakan row  pin(6,7,8,9) dan colomn pin(5,4,3,2)

Analisalah jika keypad diatas di transpose dan tentukan row pin dan column pin nya!

Jawab:

S4	S8	S12	S16
S3	S7	S11	S15
S2	S6	S10	S14
S1	S5	S9	S13

Program untuk membalikkan inputan

#include <Keypad.h>

const byte ROWS = 4; //four rows

const byte COLS = 4; //four columns

//define the cymbols on the buttons of the keypads

char hexaKeys[ROWS][COLS] = {

 {'A', 'B', 'C','D'},

{'E', 'F', 'G','H'},
{'I', 'J', 'K','L'},
{'M', 'N', 'O','P'}

};

byte rowPins[ROWS] = {9, 8, 7, 6}; //connect to the row pinouts of the keypad

byte colPins[COLS] = {2, 3, 4, 5}; //connect to the column pinouts of the keypad

//initialize an instance of class NewKeypad

Keypad customKeypad = Keypad( makeKeymap(hexaKeys), rowPins, colPins, ROWS, COLS);

void setup(){

  Serial.begin(9600);

}



void loop(){

  char customKey = customKeypad.getKey();



  if (customKey){

    Serial.println(customKey);

  }

}

Dari program diatas untuk membalikan input kita perlu membalikan baris dan kolom pada pin baris dan pin kolom program .Sehingga didapatkan row  pin(9,8,7,6) dan colomn pin(2,3,4,5)

6. Video Praktikum  [Kembali]

7. Link Download  [Kembali]

 Download Listing Program

 Download Video Praktikum
 Download File rangkaian
